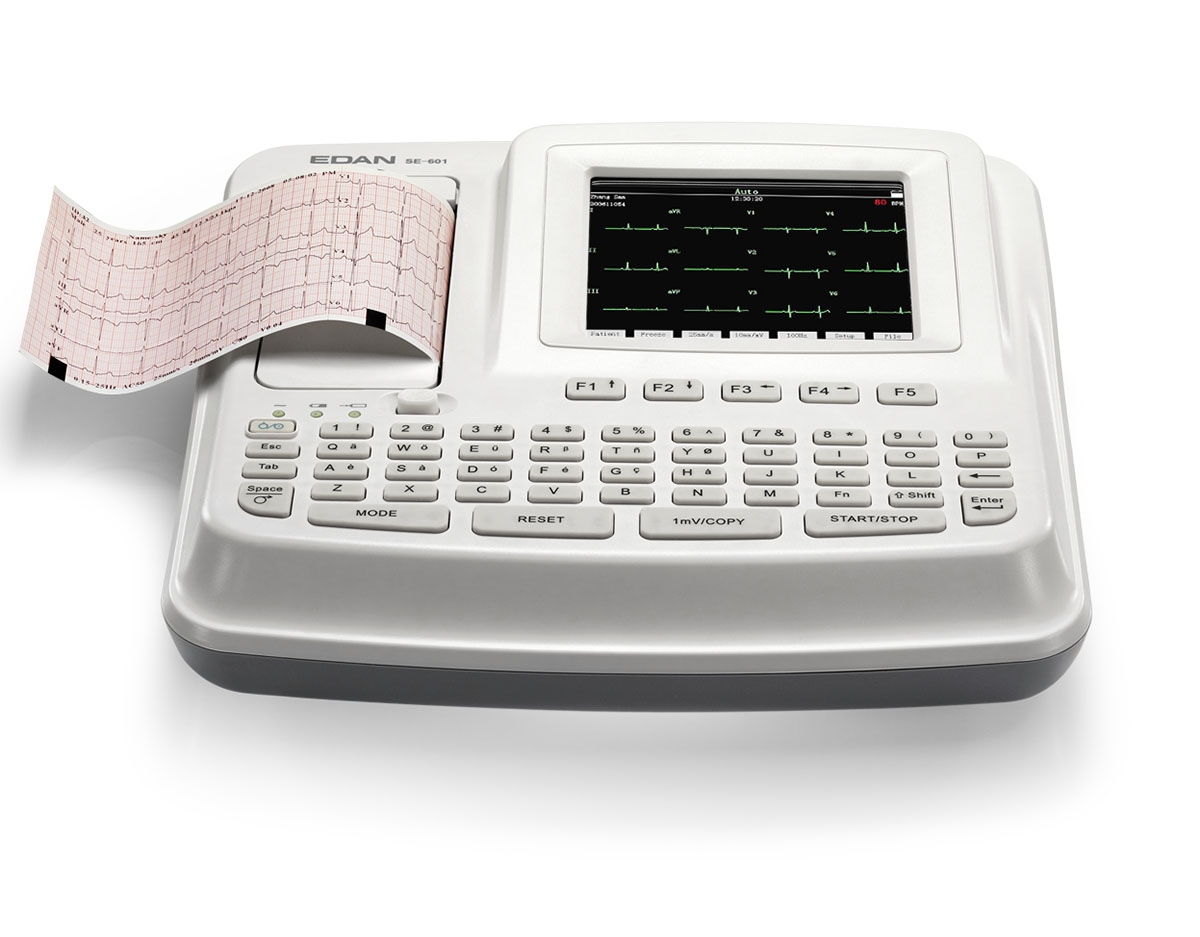

Hexagonal cardiograph EDAN SE-601B

• Six-channel recorder, thermal type, printing on 110 mm paper. Optionally, there is the possibility to print on an external printer for greater savings on paper.
• Choice of five (5) different types of printing during automatic mode and two (2) during manual mode. In case of connecting an external printer, the printing of twelve (12) leads at the same time (12×1) is also available.
• Ability to adjust the printing speed of the waveforms to six (6) different speeds
• Ability to adjust the printing sensitivity of the waveforms to five (5) different levels and additionally in automatic mode
• Features noise cutoff filters for muscle tremor, mains, digital and isoelectric line stabilization
• It has programs for measurements and diagnosis and recognition of pacing pulses.
• Storage memory for up to 800 exams with the possibility of expansion via an external storage medium (USB memory).
• Export the exams in PDF format so that no special software is required for transfer and reading on any PC.
• Optionally, it is possible to transfer the exams to the memory in a special software of the same house on a PC for further archiving and analysis.
• The connection of the ECG to the PC for the data transfer is done through an Ethernet port.
• Operation with current at 220V/50Hz but also with rechargeable batteries lasting 5 hours and for printing 1.5 hours of ECG in manual mode or printing at least 300 exams in automatic mode.
• Optionally, it can be mounted on a special castor of the same manufacturer.
• Weight up to 3kgr
Brochure: SE-601-ECG-Machine-Brochure
Prints the cardiogram in various formats, such as 6×2, 6×2+1, 3×4
Accurate analysis and diagnosis
Automatic measurements and diagnosis tested from the CSE / AHA / MIT database
Automatic analysis based on gender and age
Pacemaker detection that meets the requirements of AMSI / AAMI EC11
Flexible printing solutions
Built-in high-resolution thermal printing
Support external USB printer
Data management
Large internal memory (100 locations) expandable with USB flash disk
LAN / WIFI / RS232 connection to PC
Smart ECG Viewer software for data management on PC (optional)

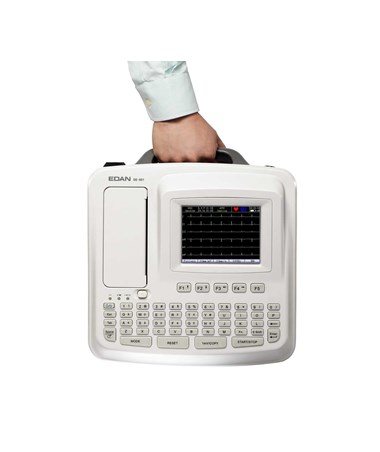

Easy to carry
Lightweight and portable design
Built-in rechargeable Li-ion battery
Wheel base with cable bracket (optional)
Carry bag (optional)
Dimensions: 310mm × 322mm × 101mm
Weight: 3.0 kg (excluding recording paper and battery)
Screen: 5.6 inch, 640 × 480 LCD color screen.
Power supply:
Operating Voltage = 100V-240V
Operating Frequency = 50Hz / 60Hz
Input Current = 0.9-0.4A
Battery : Built-in lithium Li-ion
Rated capacity = 2500mAh (1.5 hours continuous printing, 300 ECG reports)
Required charging time: 5 hours
Recording paper: 110mm × 140mm × 150pages
Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
Communication interface: Ethernet, RS232, USB
Specifications:
• LCD screen, manual and automatic recording
Accessory:
• Rolling base
• Carrying Bag
• Optionally export data to FDA-XML/SCP/DICOM
