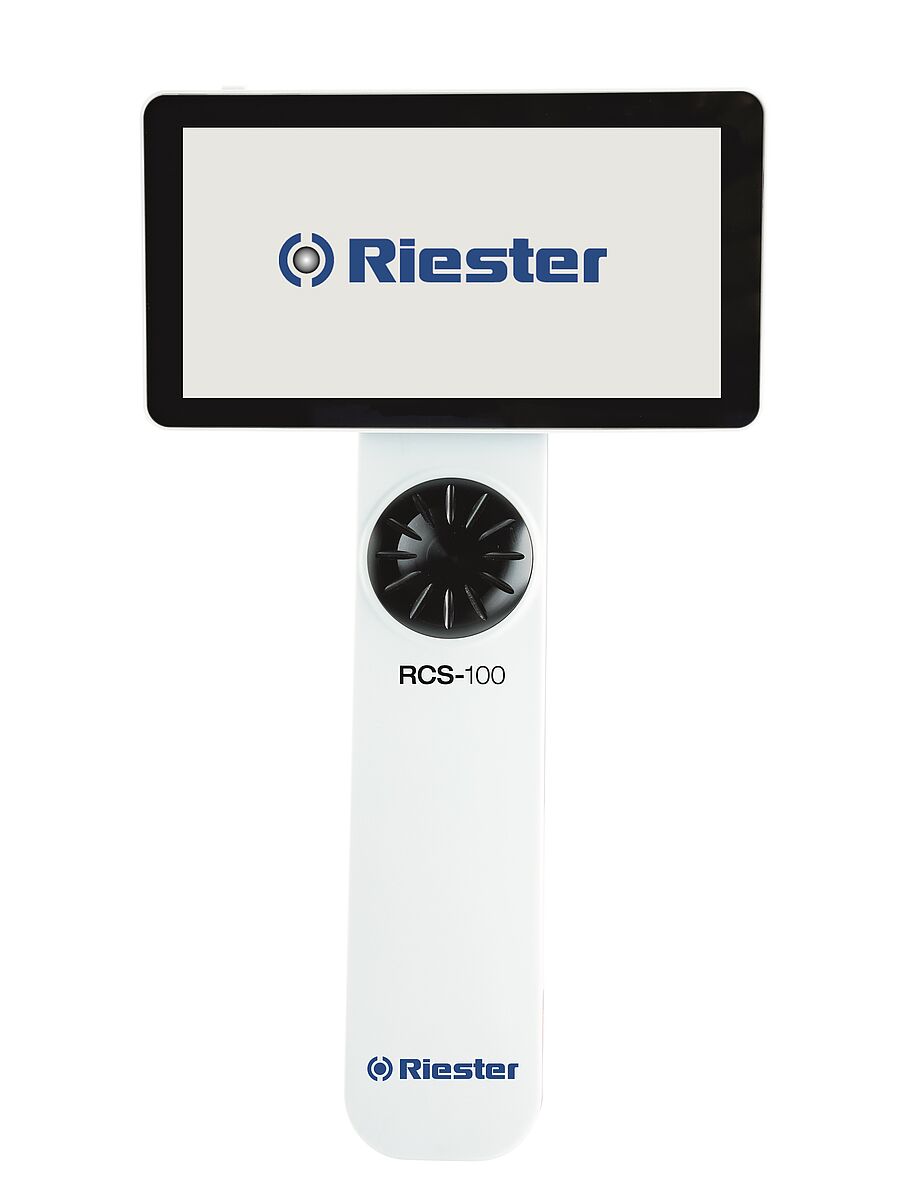

Riester RCS-100 Otoscope with Display

Brochure: https://harm-rdc.xotest.gr/wp-content/uploads/2026/04/RCS-100.pdf

Features:

• • Dimensions: 225 mm x 135 mm x 45 mm (8.86 x 5.31 x 1.77 in)

• • Weight: 292 g (10.3 oz)

• • Power supply: rechargeable lithium-ion battery

• • Full HD 5-inch TFT-LCD color display inch

• • 8 MPixel CMOS for high resolution and scalable image

• • Image format: JPEG

• • Video format: H.264

• • Resolution: Full HD true 3264 x 2448 Pixel
    • Rotary wheel allows easy one-handed operation

• • • • 16 GB internal memory

• • 3.5 hours of video playback time
• • Focus settings: automatic (otoscope / general lens), manual (all lenses)
  • • The RCS-100 user interface in English
  • • New patient to add via user interface, information is saved in the image / video file name
  • • Charging time: 3 hours

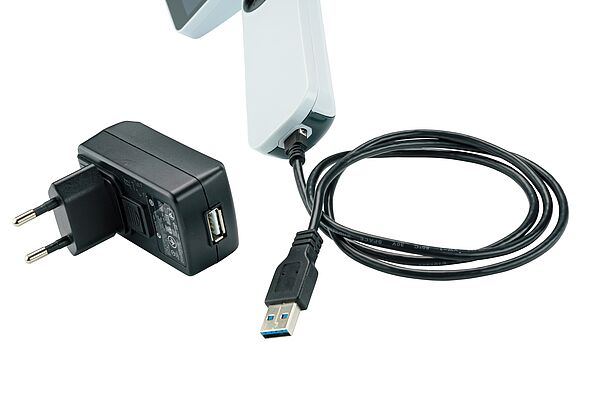

  • • Connectivity: Micro USB 2.0, minimum cable length 180cm

  Features of the otoscope lens

  1. Improved view of the ear canal
  2. On-screen magnification: 6x
  3. 12mm field of view at 25mm from the object (with 4mm cone)
  4. 9mm field of view at 15mm from the object (with 4mm cone)
  5. 8mm field of view at 10mm from the object (with 4mm cone)
  6. Consumable and reusable items mm (in): 2 (0.08), 3 (0.12), 4 (0.16), 5 (0.2)
  7. Light source: visible white LED
  8. LED color temperature: 4000K
  9. Focus range: 8-25 mm (0.31-0.98 in)
  10. Resolution: 8 MP CMOS
  11. Air channel for pneumatic testing (compatible with existing Riester connector)
  12. Dimensions: 7.35 x Φ4 cm
  13. Head weight: 96g (3.40 oz)
