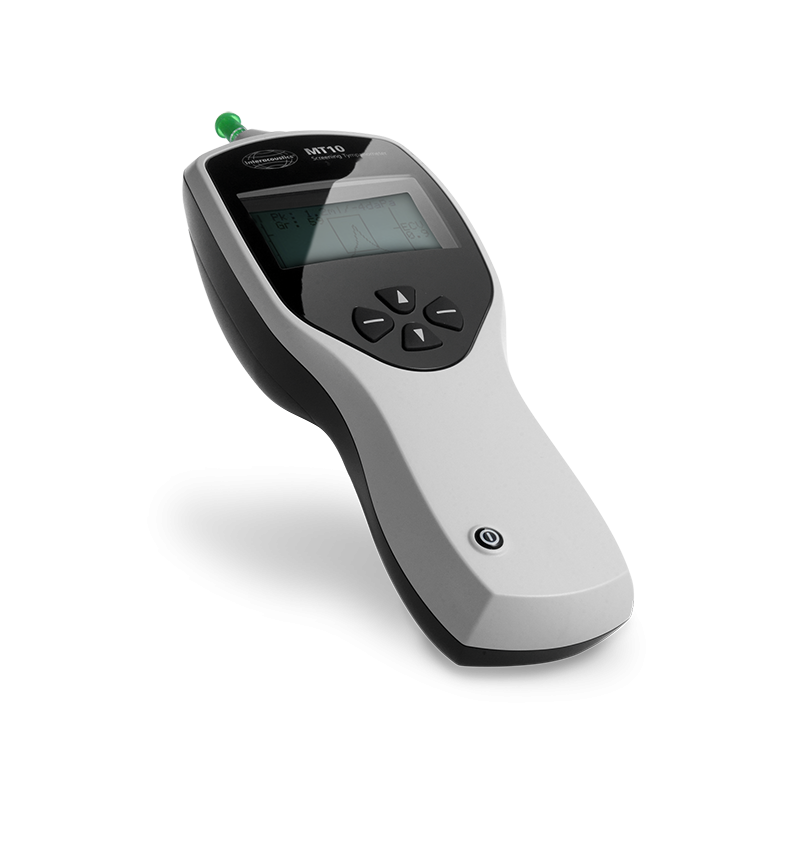

Portable Drum Meter MT 10

Brochure: MT 10 Brochure

Tympanymy
• On-screen resolution: Maximum compliance, maximum pressure, inclination, equivalent ear volume
• Detection frequency: 226 Hz
• Pressure levels: +200 daPa to -400 daPa
• Ear volume measurement range: 0.2 ml to 5 ml
• Scanning speed: Usually 200-300 daPa/sec, depending on ear and cavity
volume• Pressure limits (closed: +600 to -800 daPa

• Data retained: Patient name initials, drum graphs, reflexes and analysis for left ear and/or right ear, time and date of recording, which ears were tested, regardless of whether the recording has been printed or not. Data on whether the recording was sent to a computer or the parameters printed.

General features:

• 30 patient memory: Examine several patients in parallel and print the data later (optional).
• Computer interface (optional): full data transfer to a computer via Diagnostic Suite for Windows software and USB connection.
• Size: 19 x 8 x 4 cm excluding handle (length with handle 22.5 cm)
• Weight: 285 g without battery
• Internal backup power: > 30 days without inserting the main batteries
• Battery life: Approx. 400 tests (AA alkaline batteries)
• Standard: Safety: IEC 60601-1. EMC: IEC 60601-1-2
• Impedance Standard: lEe 60645-5, Eardrum 2

Package Includes:

1. The Device
2. The Holding Handle for Greater Ease of Viewing

Set

3. of 139 Disposable Ear Parts (Various Sizes)
4. 4×1.5 V

Rechargeable Batteries

5. Instructions in English and

Greek

6. Software: English, French, German
